Model

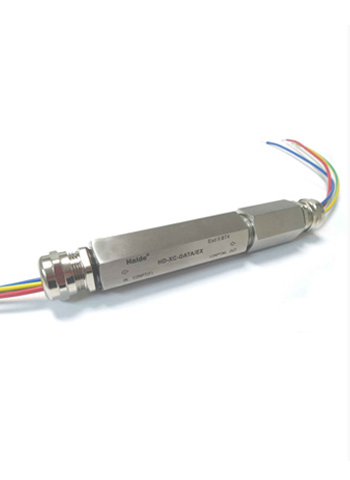

HD-XC-DATA/EX

Nominal working voltage Un

24V

Maximum continuous working voltage   Uc

32V

Nominal discharge current In  （8/20μs）

10KA

Maximum discharging current           Imax（8/20μs）

20KA

Withstand impulse voltage Uoc

20KV

Limit voltage

39V

Response time Ta

≤1ns

Maximum rated loading current

≤1A

Insertion loss

≤0.2dB

Insertion resistance

≤1Ω

Protection line

1,2

Protection grade

IP67

Sheathing material

Metal

Mode of connection

Explosion-proof application

                          Yes
